Search

Search

Grid allows variety of different options to make search feature more usable.

Autofilter toolbar

You can enable it by setting:

$g->set_actions(array(
                        // ...
                        "autofilter" => true
                        // ...
                    )
                );

By default it will be hidden and once you set xs+ autofilter will come back on extra small and onwards.

$opt["search_options"]["autofilter"] = "xs+"; // xs+, sm+, md+
$g->set_options($opt);

^ Top

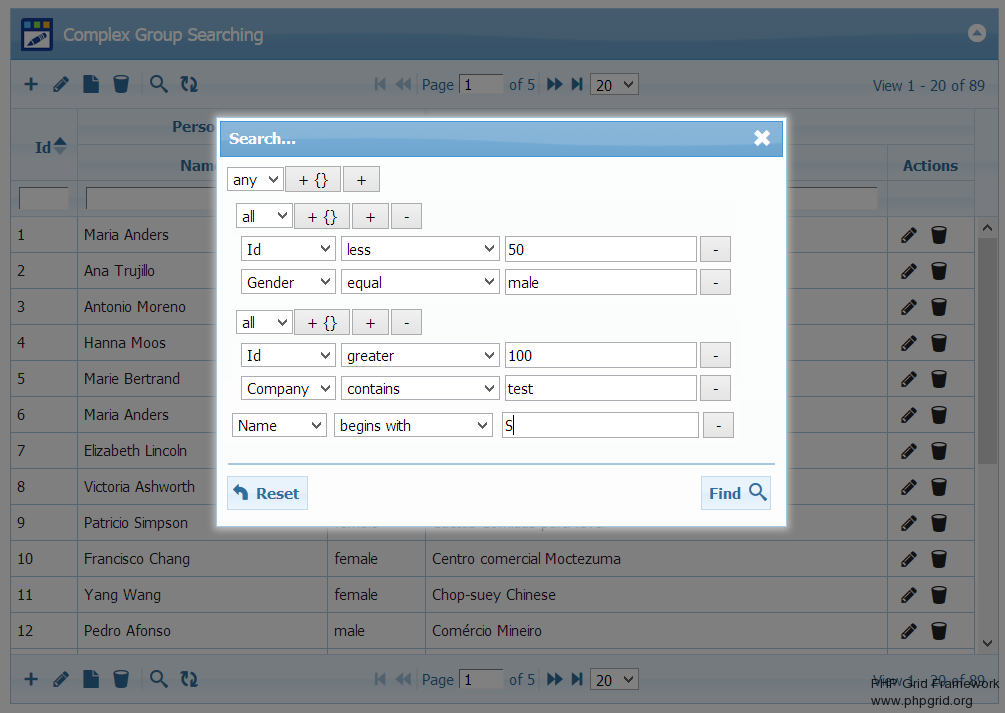

Search Dialog

Basic search dialog can be enabled by search key in set_actions function. Possible values are simple, advance

Values	Description
simple	Single column search dialog
advance	Multi column search with AND / OR option
group	Multi column search with multiple AND / OR groups

$g->set_actions(array(
                        // ...
                        "search" => "advance"
                        // ...
                    )
                );

Resources

• Sample Code
• See Live Demo
• You can check this demo in archive demos/search/search-group.php

^ Top

Search Templates

You can also set predefined search templates using grid options.

// Define predefined search templates
$opt["search_options"]["tmplNames"] = array("Template1", "Template2");
$opt["search_options"]["tmplFilters"] = array(
    array(
        "groupOp" => "AND",
        "rules" => array (
                        array("field"=>"name", "op"=>"cn", "data"=>"Maria"),
                        array("field"=>"closed", "op"=>"cn", "data"=>"No"),
                        )
    ),
    array(
        "groupOp" => "AND",
        "rules" => array (
                        array("field"=>"total", "op"=>"gt", "data"=>"50")
                        )
    )
);

$g->set_options($opt);

Resources

• Sample Code
• See Live Demo
• You can check this demo in archive demos/search/search-template.php

^ Top

Search External Form

For further customizations, you can create an custom HTML form and connect it to datagrid search javascript api.

Resources

• Sample Code
• See Live Demo
• You can check this demo in archive demos/search/search-form.php

^ Top

Search on Load

Following config will enable search on load. Initialize search with name field equal to eq 'Client 1'

$sarr = <<< SEARCH_JSON
{
    "groupOp":"AND",
    "rules":[
      {"field":"name","op":"eq","data":"Client 1"}
     ]
}
SEARCH_JSON;

$opt["search"] = true;
$opt["postData"] = array("filters" => $sarr );

If you wish to persist search settings on page reload:

$opt["persistsearch"] = true;

Resources

• Sample Code
• See Live Demo
• You can check this demo in archive demos/search/search-onload.php

^ Top

Search based on URL parameters

You can filter datagrid based on URL parameter as well. Url format is {gridid}_{colname}={value} e.g. page.php?list1_closed=1 will filter grid with id list1 on page.php with column name closed to 1 You can add multiple filtering (AND) conditions as shown in image.

To have a numeric range filter, (total > 10) you can set e.g. ?list1_total=>10

Resources

• Sample Code
• See Live Demo
• You can check this demo in archive demos/search/search-onload-url.php

^ Top

Show / Hide columns based on URL parameters

You can show or hide certain column based on URL parameter as well. Url format is {gridid}_showcols={col1},{col2} or {gridid}_hidecols={col1},{col2}

e.g. page.php?list1_showcols=id,invdate,note&list1_hidecols=total

This will show columns with name id,invdate,note (if defined and hidden) and hide column name total where list1 is grid id on page.php.

^ Top
